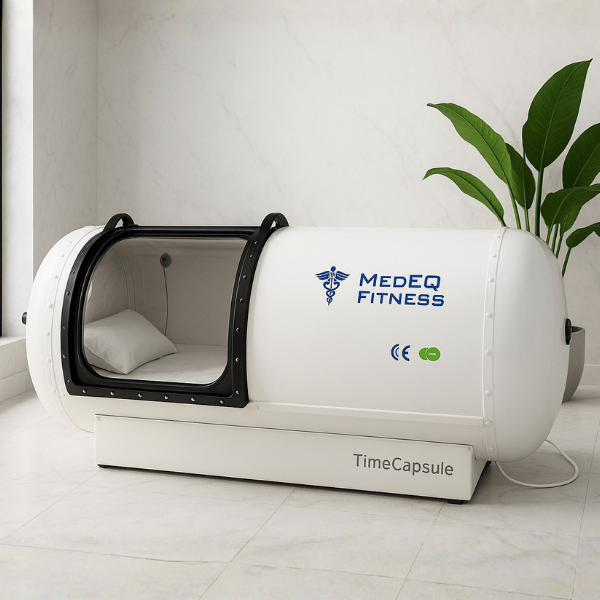

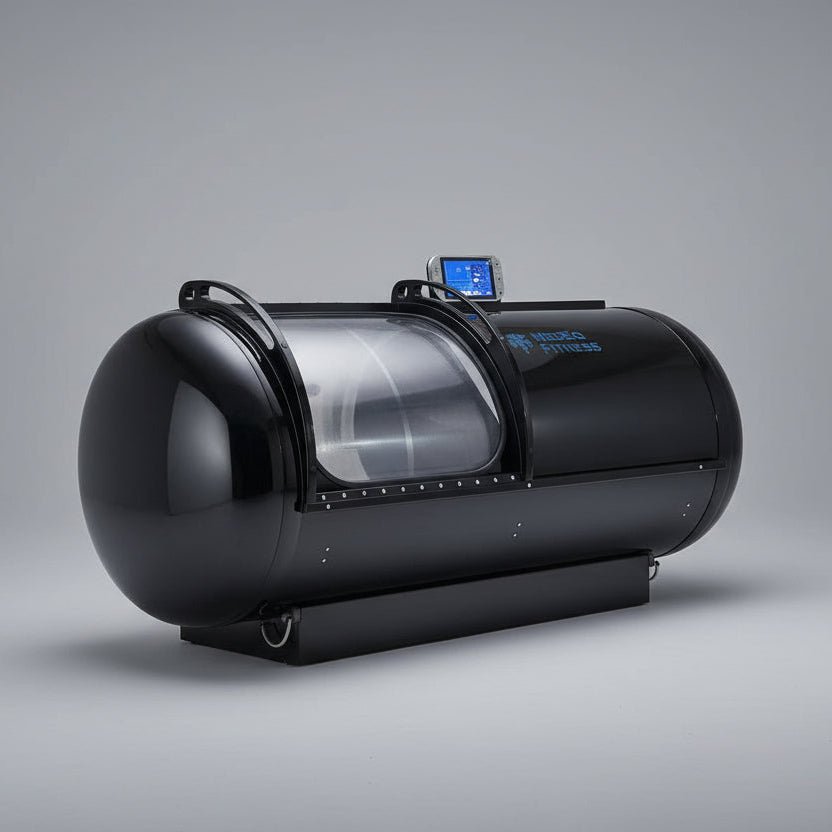

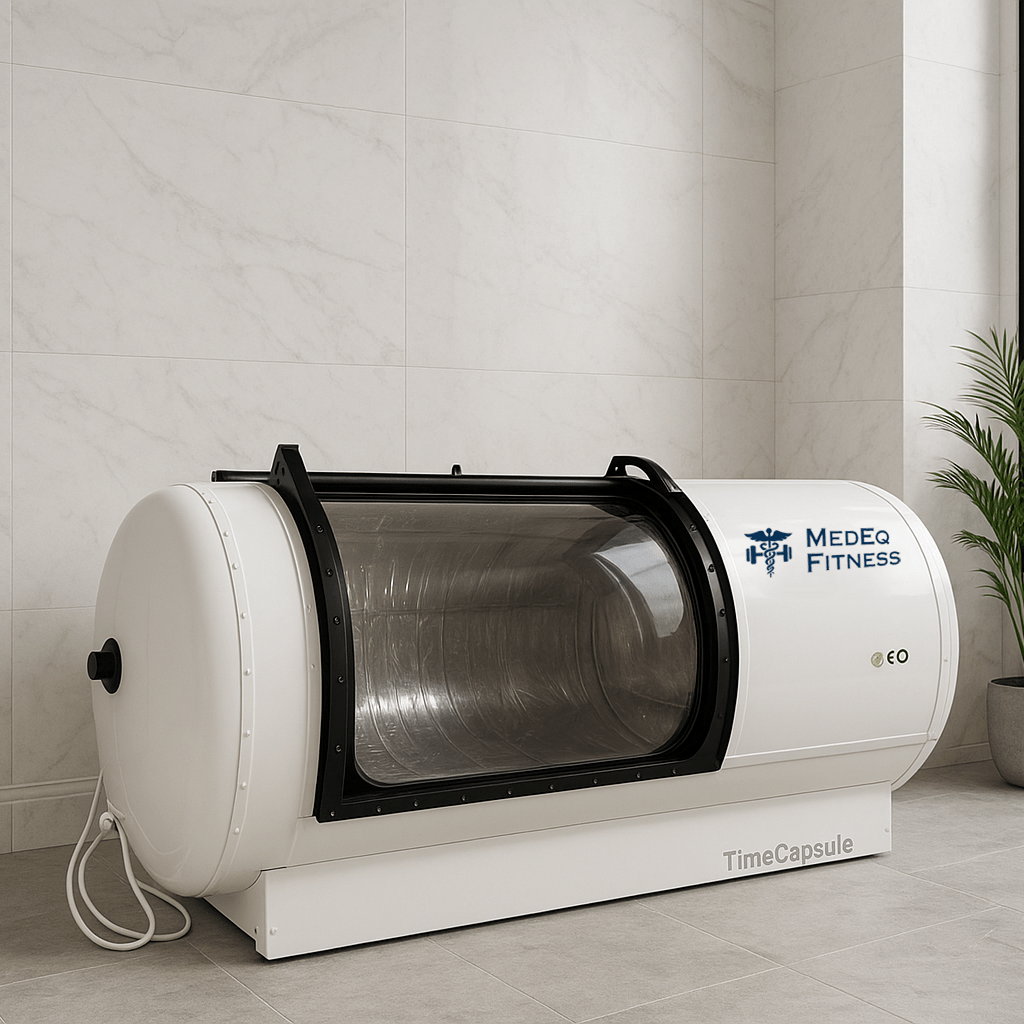

MedEq TimeCapsule C750+ 2.0 ATA Aluminum Hard-Shell Hyperbaric Chamber

The MedEq TimeCapsule C750+ 2.0 ATA is a capsule-style hard-shell hyperbaric oxygen chamber engineered for serious therapeutic performance in clinics, recovery centers, med-spas, and advanced home installations.

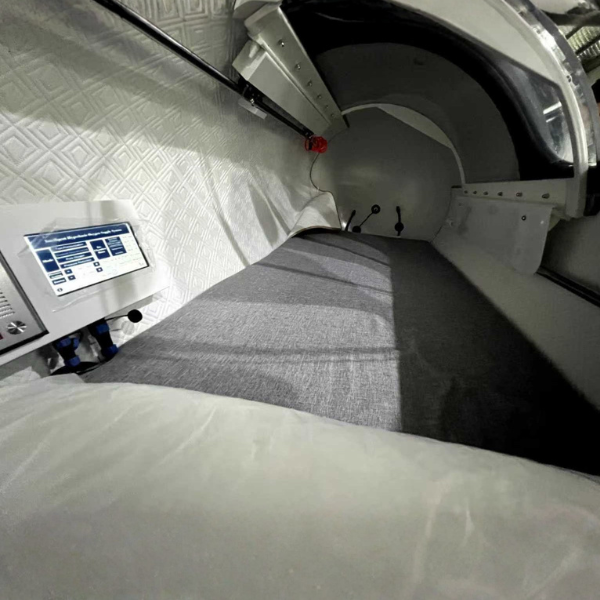

Built on the Kingshare KX-Y01 platform and customized to MedEq Fitness specifications, the C750+ delivers true 2.0 ATA operating pressure in a compact aluminum alloy pressure vessel. Its monoplace capsule layout provides a comfortable recumbent position while maintaining a smaller installation footprint.

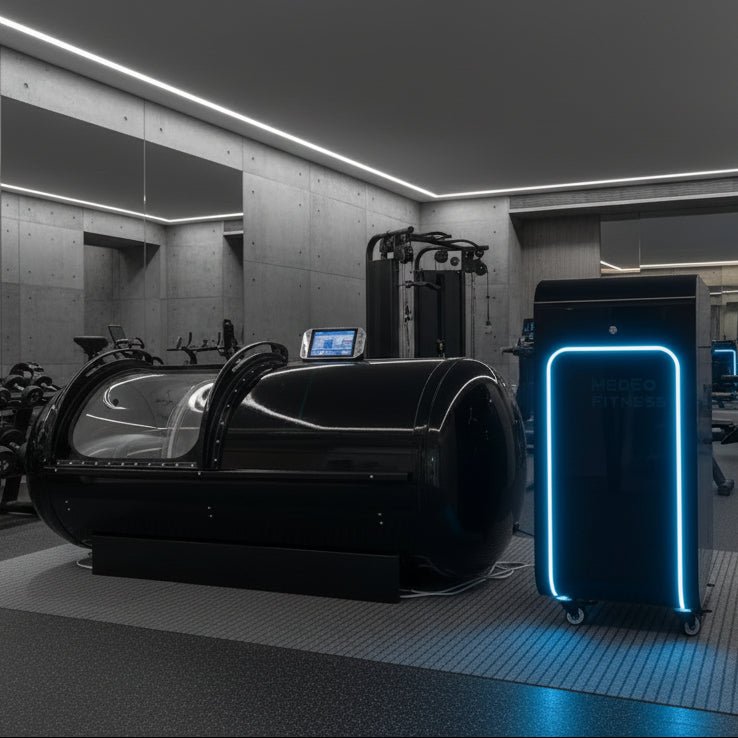

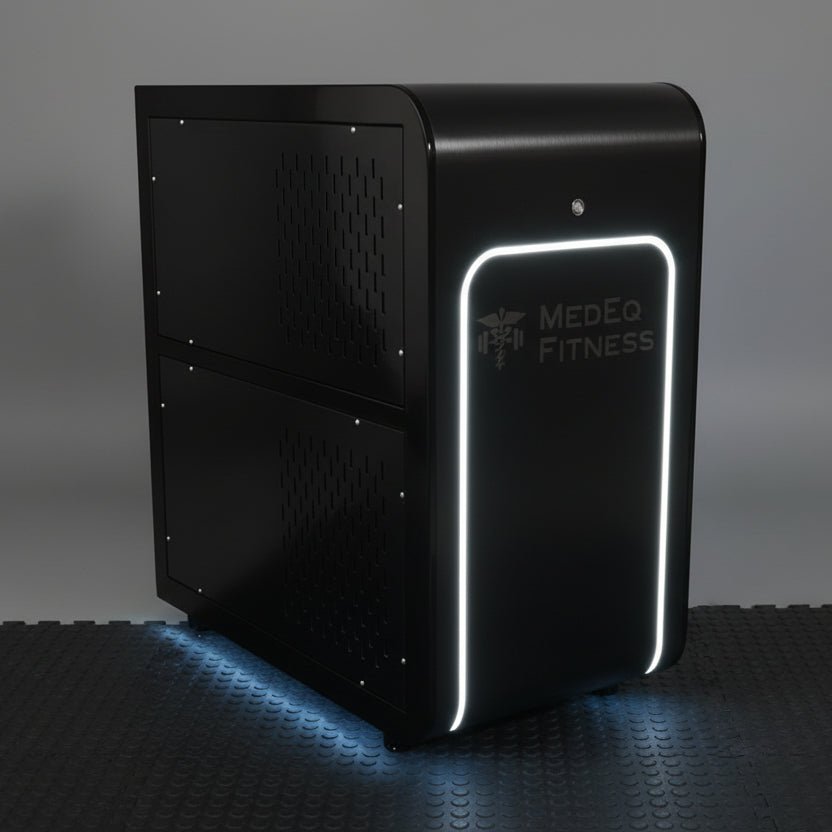

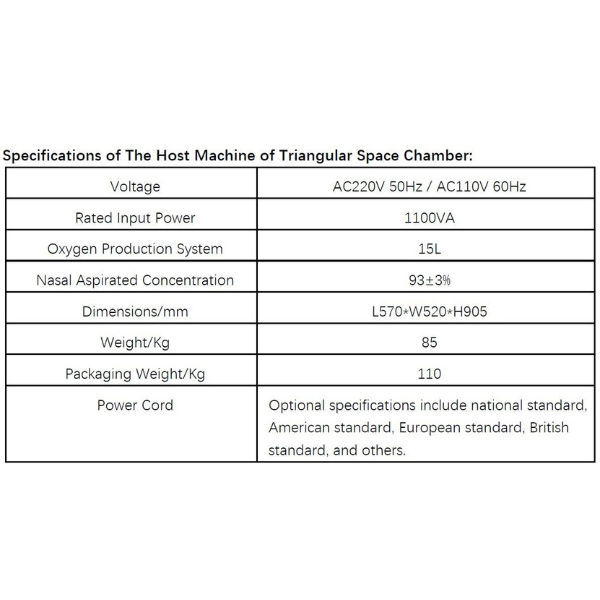

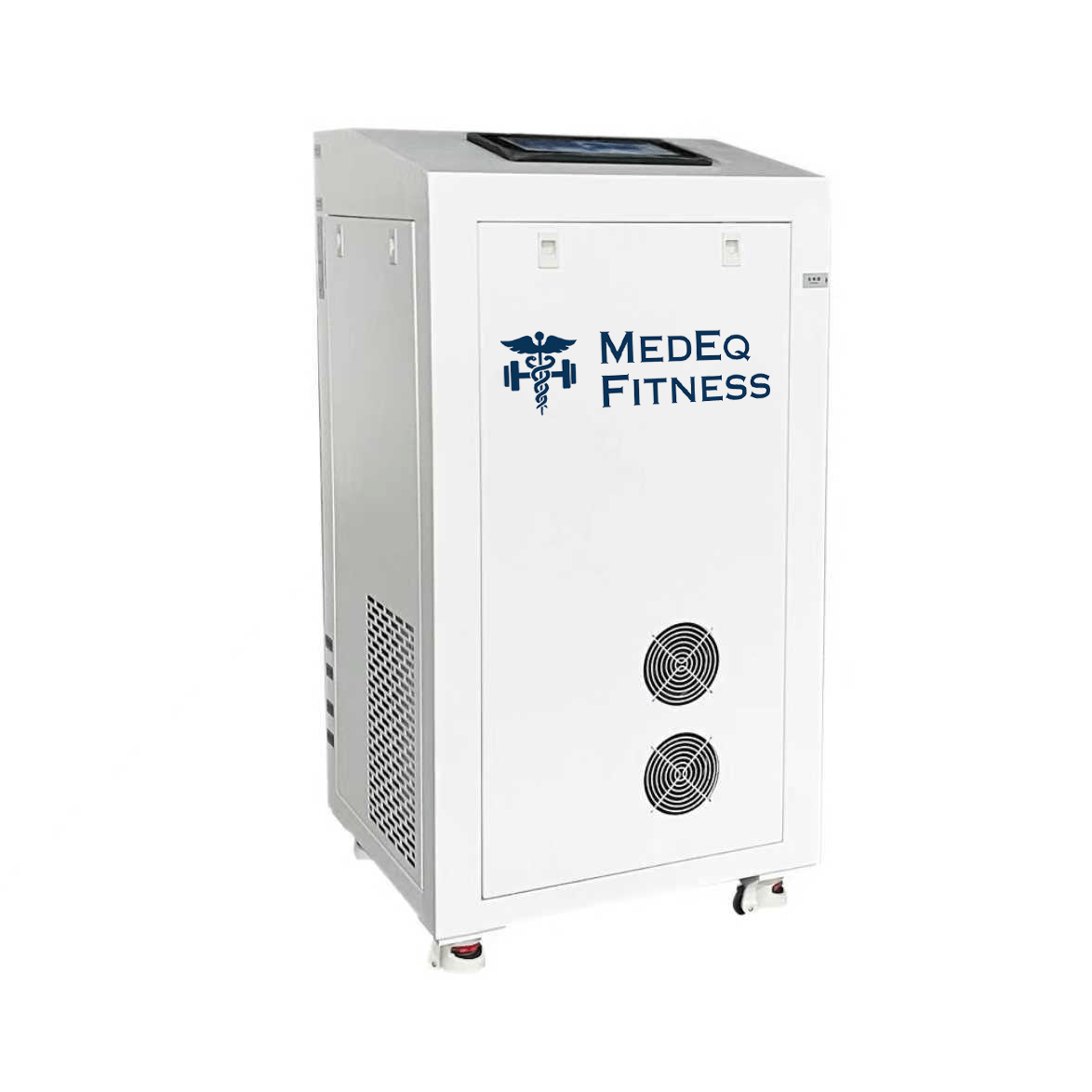

An integrated all-in-one host unit combines oil-free air compression, PSA oxygen generation, and cabin air-conditioning into a single external module for simplified installation and cleaner system design.

• Aluminum alloy capsule chamber (KX-Y01 platform)
• All-in-one host unit (compressor + oxygen concentrator + AC)

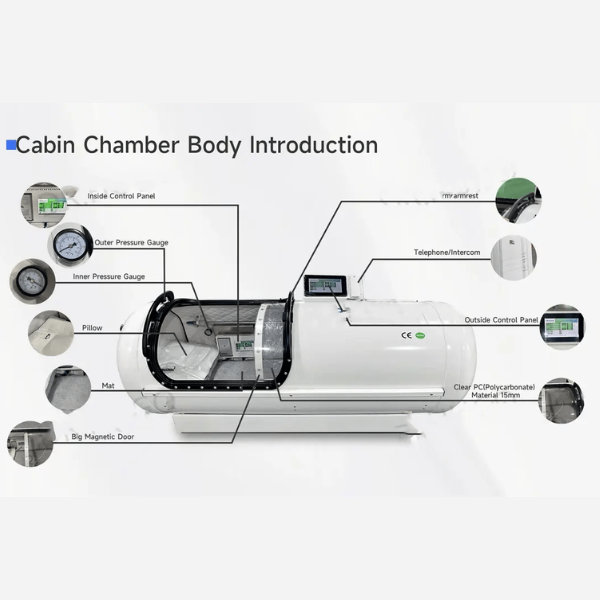

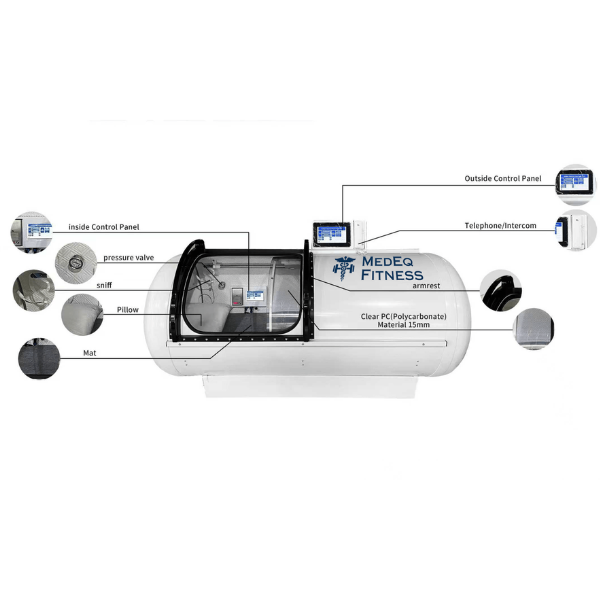

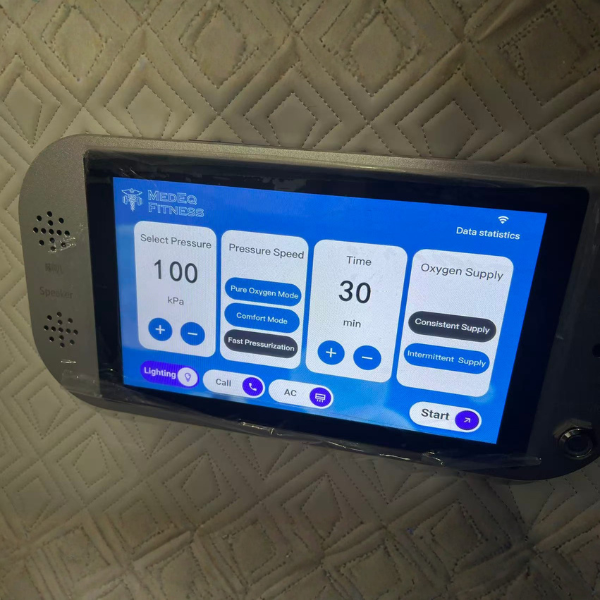

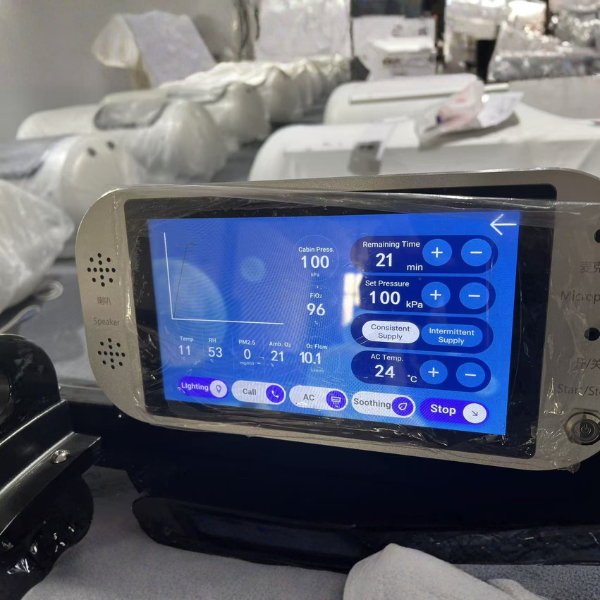

• Dual control screens (internal & external)
• Wireless intercom system
• Multi-stage air filtration & ionization system
• Oxygen mask and tubing

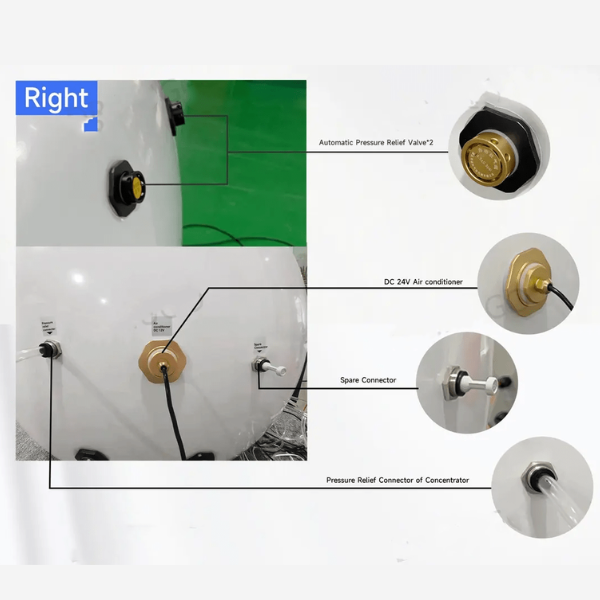

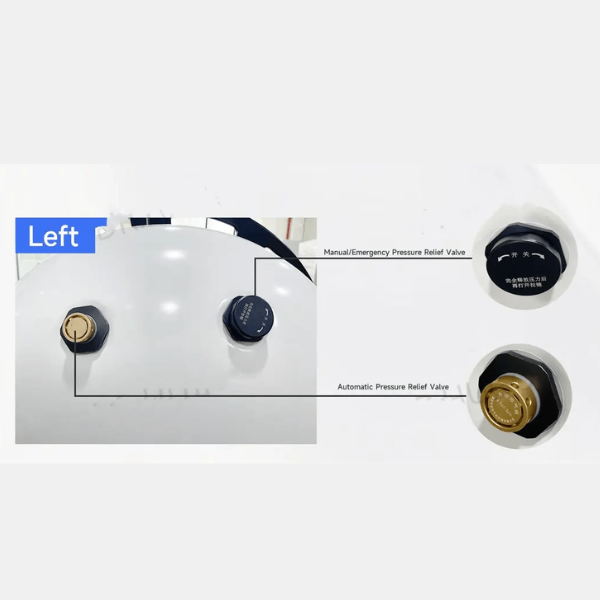

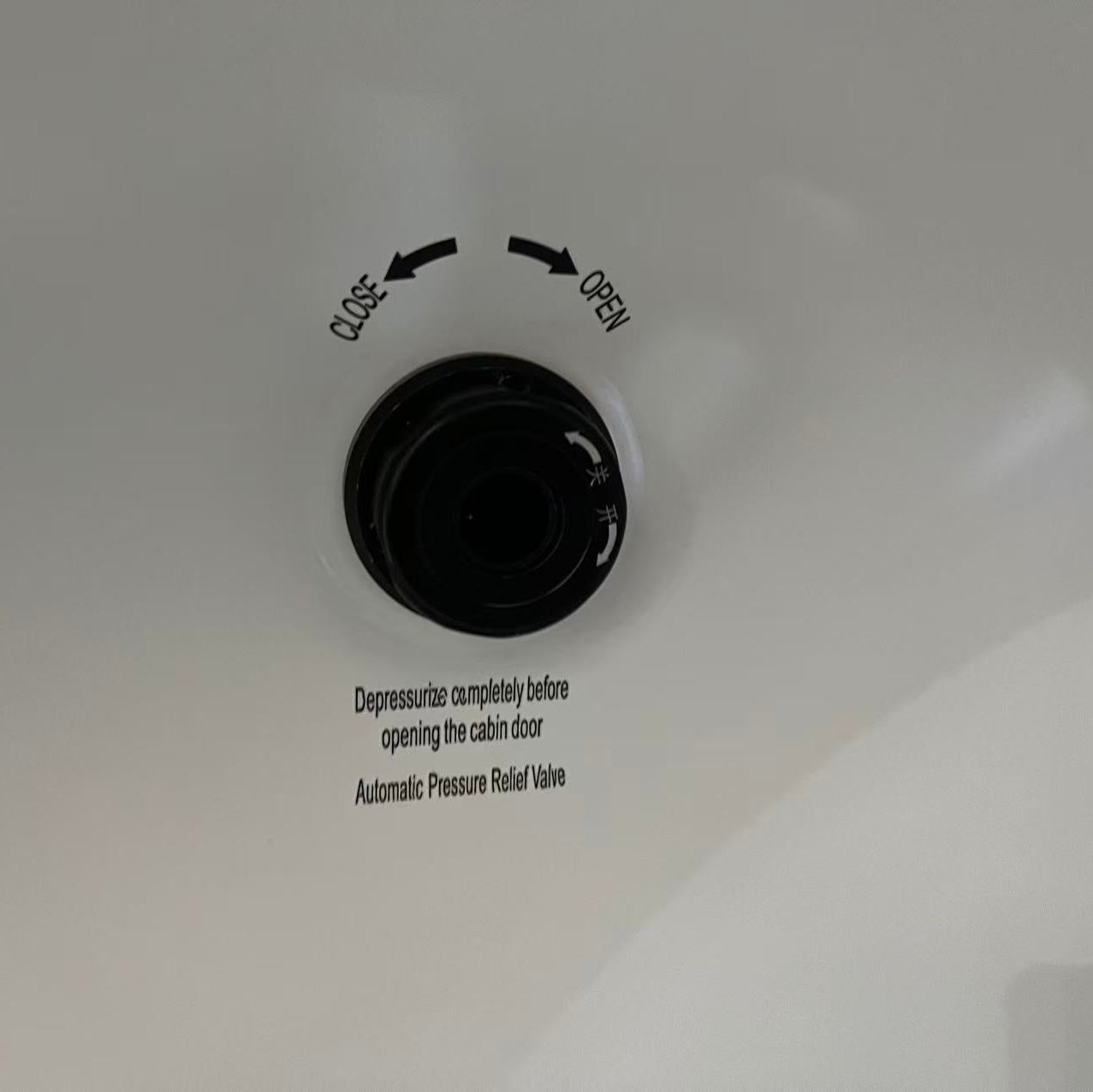

• Safety valves and emergency depressurization system
• Power cable and standard accessories

• Operating Pressure: Up to 2.0 ATA (≈2 bar)
• Typical Operating Setpoint: 1.9 ATA
• Internal Length: 2000 mm (≈78.7 in)
• Internal Diameter: 750 mm (≈29.5 in)
• Cabin Material: Aircraft-grade aluminum alloy
• Diffused Cabin Oxygen: ≤23%
• Humidity: ~26%
• Internal Noise: ≤20 dB typical

• Power Supply: 220V 50Hz or 110V 60Hz
• Power Draw: ~850–1000W
• Oxygen Purity (PSA): ≈93% ±3%
• Oxygen Flow: Up to ~15 L/min (unit-set)
• Oxygen Pressure (Host): ~120–140 kPa
• Operation Noise (Host): ≤50 dB

• Built-In Breathing System (BIBS)
• Red Light Therapy Panel

*Due to internal volume considerations, MedEq Fitness recommends selecting either the Red Light Panel or the BIBS system—not both.

This chamber is designed for general wellness, recovery, and conditioning applications. Hyperbaric oxygen therapy is cleared by the FDA for specific medical indications only.

MedEq Fitness does not claim this device diagnoses, treats, cures, or prevents any disease beyond FDA-cleared indications.
